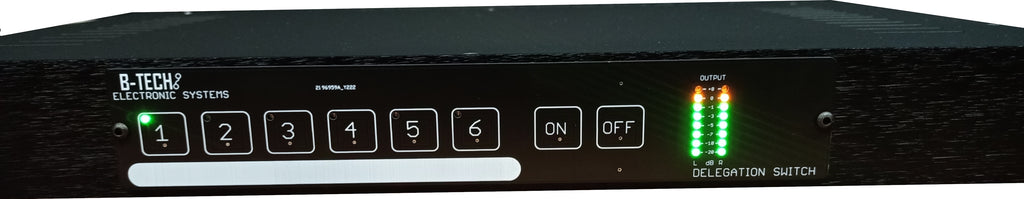

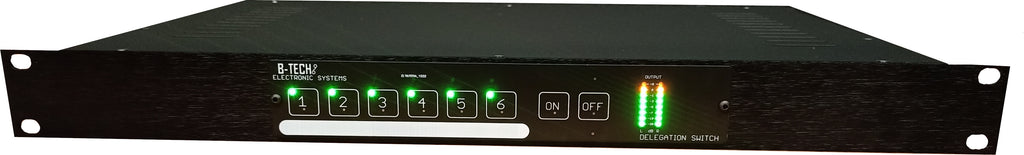

The DEL-06 Audio Delegation Switch is a professional 6-input stereo balanced audio switcher designed for broadcast studios and other applications that require audio source control.

Featuring six +4 dBu balanced stereo inputs and a balanced stereo output, the DEL-06 allows one or multiple input sources to be selected simultaneously.
Responsive front-panel touch buttons with bright green LED indicators provide clear status indication and intuitive manual operation, while the integrated LED VU meter gives an instant visual indication of the output audio level.

For automated installations, the DEL-06 features a built-in plug-and-play USB serial interface, allowing seamless control from broadcast automation and third-party control systems.

The front-panel controls can also be locked to prevent unauthorised operation.

In addition to USB serial control, the DEL-06 supports remote operation via its web interface and Telnet commands, making it easy to integrate into networked broadcast and automation systems.

GPI and GPO connections provide contact-closure control and remote status monitoring, allowing external switches, studio indicators, and automation equipment to interface directly with the unit.

Balanced audio inputs and outputs are provided on RJ45 connectors using the industry-standard Audio over UTP pinout, allowing direct connection to Axia® and Wheatstone® systems.
Optional interface cables are available for connection to other professional audio equipment.

Features

  • Six balanced stereo +4 dBu audio inputs

  • Balanced stereo audio output

  • Multiple inputs can be active simultaneously

  • Capacitive front-panel touch controls

  • Bright green input status indicators

  • Front-panel LED VU meter

  • Plug-and-play USB serial control

  • Front-panel lockout via serial commands

  • Web interface for remote monitoring and control

  • Telnet TCP control for automation systems

  • GPI inputs for external control

  • GPO status outputs for remote monitoring

  • Balanced RJ45 audio connections using the Audio over UTP standard

  • Compatible with Axia® and Wheatstone® studio systems

  • Optional interface cables available for other equipment

  • 1RU aluminium enclosure
