The UAI-01 USB Studio Audio Interface provides a simple and reliable way to connect a computer to professional broadcast and studio audio systems. Featuring a high-performance 48 kHz, 32-bit USB audio interface, the UAI-01 delivers ultra-low distortion and exceptional audio quality for recording, playback, and on-air applications.

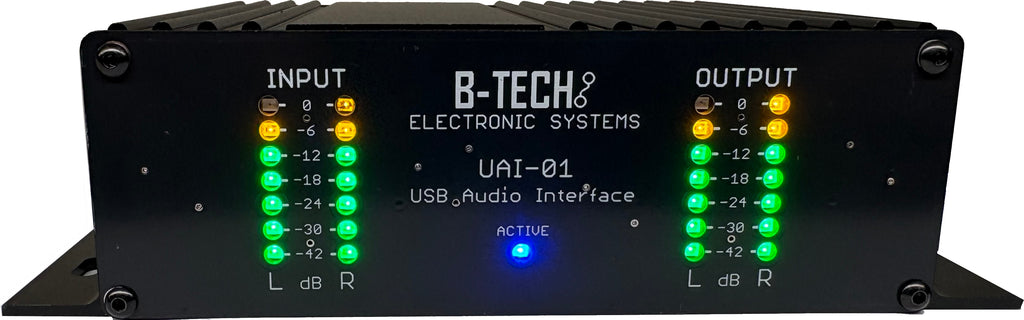

Powered entirely from its USB-C connection, the UAI-01 requires no external power supply, making installation quick and hassle-free. Bright front-panel LED VU meters provide instant visual indication of input and output audio levels, while adjustable level controls allow the interface to be easily matched to professional audio equipment.

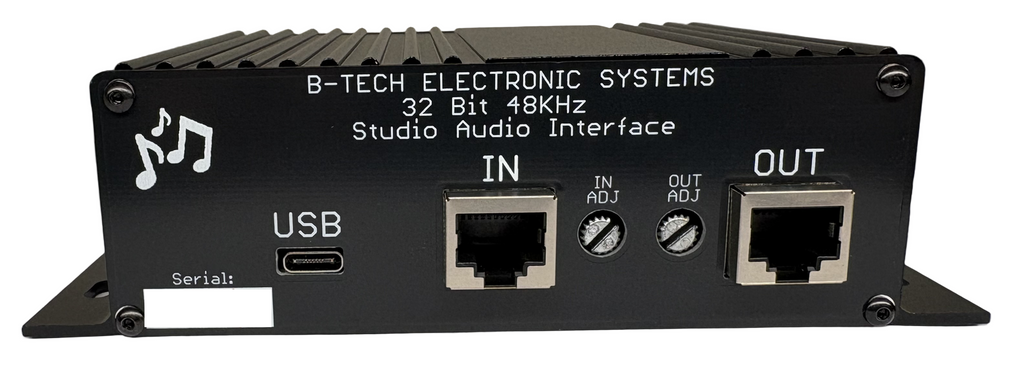

Balanced stereo audio is connected via RJ45 connectors, making the UAI-01 an ideal companion for modern broadcast installations using structured cabling systems and compatible with Axia® and Wheatstone® audio infrastructure.

Features

• Professional 48 kHz, 32-bit USB audio interface

• Ultra-low distortion, studio-quality audio

• Front-panel LED VU meter indication

• Balanced stereo RJ45 audio inputs and outputs

• Compatible with Axia® and Wheatstone® studio wiring

• USB-C connection with full USB bus power

• No external power supply required

• Adjustable input and output levels

• Output level adjustable from −6 dBu to +12 dBu into 10 kΩ

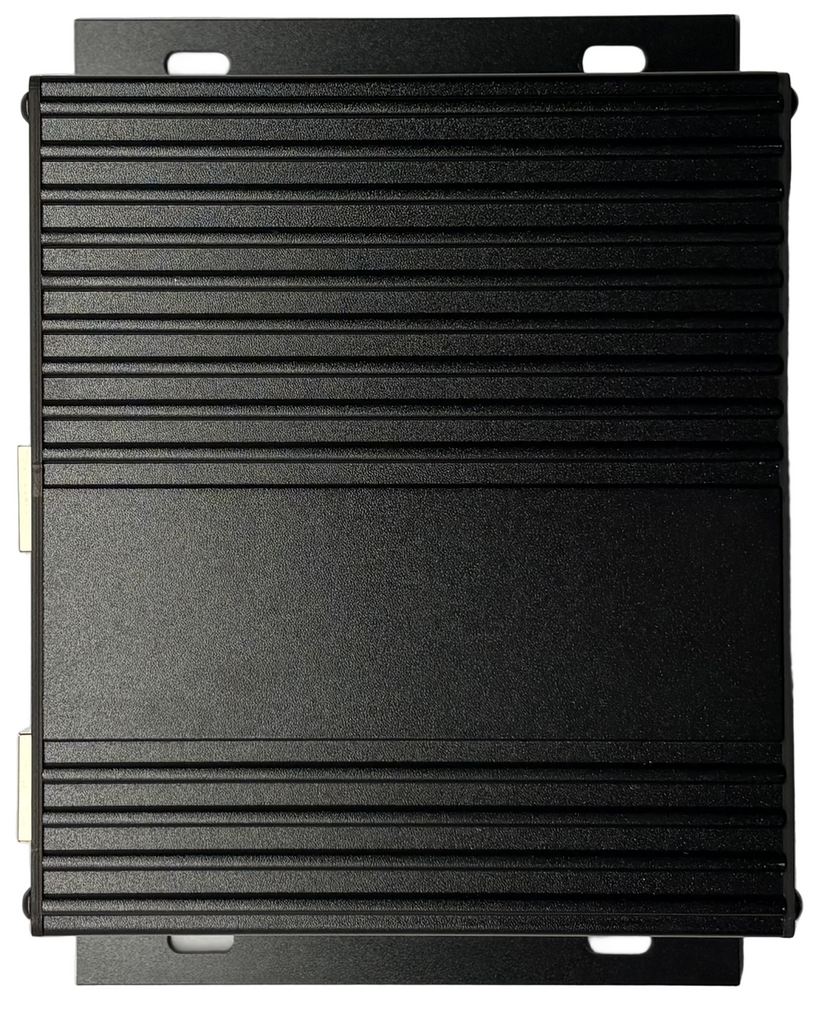

• Compact, rugged aluminium enclosure

• Mounting Tabs for underdesk
